Panels & wiring
Sump pump circuit installation
A dedicated sump pump circuit gives the pump its own breaker and outlet, so a tripped breaker from another appliance cannot shut it off during a storm. It is often paired with a battery backup, a high-water alarm and a generator connection.
- Call now to check electrician availability in your area
- Licensed, independent electricians
- 48 states + DC
About sump pump circuit installation
Sump pumps are often plugged into whatever basement outlet was closest, sharing a circuit with a freezer, laundry or lights. If that circuit trips during heavy rain, the pump stops and the basement floods.
Current code generally requires GFCI protection for basement receptacles, and electricians weigh how to meet it for a sump pump while keeping nuisance trips from leaving the pump off. Many owners add a battery backup pump and an alarm so they know when something fails.
- Sump Pump Circuit Installation at a glance
- Panels & wiring
- Who does the work
- An independent licensed electrician
- Urgent calls
- Usually scheduled
- Typical first step
- Check the panel and route
Signs you need this
- The sump pump shares an outlet or circuit with other appliances
- An extension cord feeding the pump
- A breaker that has tripped during storms
- A finished basement worth protecting
- Wanting the pump on a generator during outages
What the electrician does
- 1
Check the panel and route
The electrician confirms panel space and plans the run to the sump pit.
- 2
Install the circuit
A dedicated breaker and outlet are installed with the protection code requires.
- 3
Add backup and alarm
Optional battery backup, a high-water alarm, or a generator-ready circuit are connected.
- 4
Test
The pump is tested on the new circuit and on backup.
What affects the cost
Electricians set their own prices. These are the factors that move a quote up or down, so you can compare like for like.
- Distance from panel to sump pit
- Panel space or the need for a subpanel
- Finished walls and ceilings
- GFCI and alarm options
- Battery backup or generator connection
What you can do safely, and when to stop
Safe to do
- ✓ Test the pump each spring by filling the pit with water
- ✓ Keep the pit clear of debris
Stop and call
- ✕ Do not run a pump on an extension cord long-term
- ✕ Do not remove GFCI protection to stop trips
Sump Pump Circuit Installation FAQ
Does a sump pump need its own circuit?
It is strongly recommended, so other loads cannot trip the pump off. Some local codes require it.
Does a sump pump outlet need GFCI?
Current code generally requires GFCI protection for basement receptacles; your electrician will apply the local rules and pick equipment that limits nuisance trips.
Can a sump pump run on a generator?
Yes. A generator inlet and interlock or transfer switch can include the sump pump circuit.
Is a battery backup worth it?
In areas with storm outages and basement flooding, a battery backup pump is a common and worthwhile addition.
How long does it take?
Often a few hours in an unfinished basement.
Where electricians offer this
Local guides to sump pump circuit installation in cities where local housing makes it a common job:
By state:
Available through our network in 48 states and DC. Metro guides:
Related services

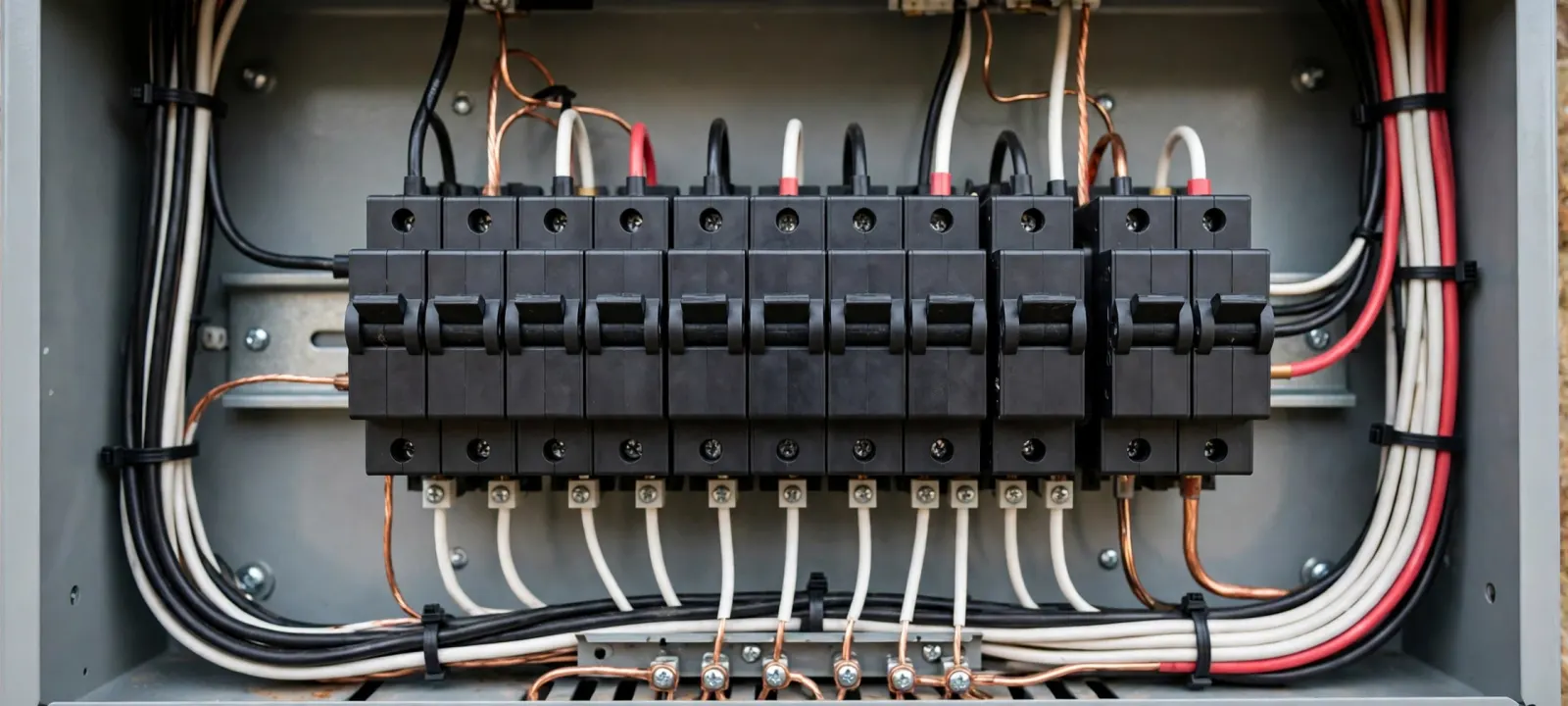

Dedicated Circuits
